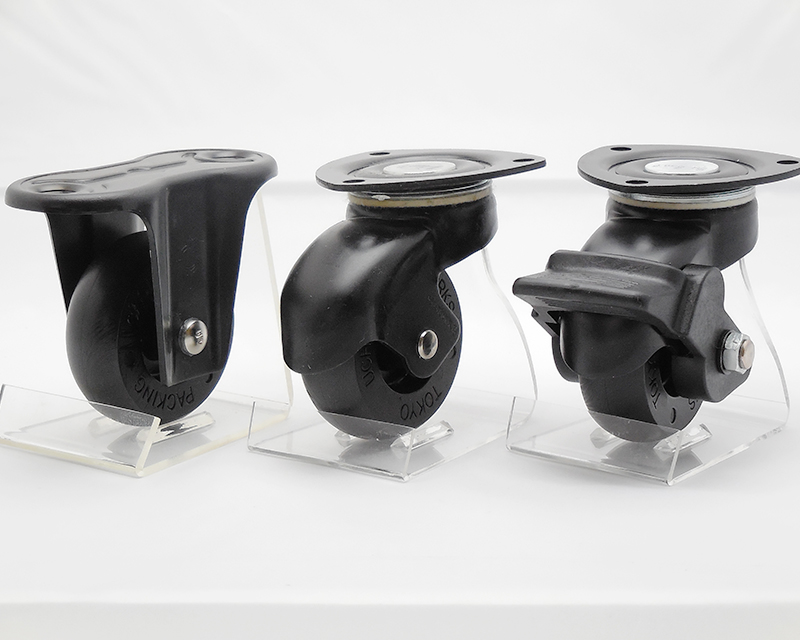

●取付座は、衝撃力などバランスよく吸収する三角形にしてあります。
また、取付穴は従来の4穴式と3穴式として取り付け工数の省力化を図りました。
●旋回半径は、ストッパーON・OFF何れかの最大値です。
●本体黒色ボディと鮮やかなカラーの車輪、用途や条件に併せた選択ができます。
●高性能なストッパー機能は、ウレタンパッドで車輪側面(左右2点)を確実に押さえる、安全性を考慮した独自の新構造です。
●ストッパーのON・OFFはステップを押し下げてON、上げてOFFするだけの簡単操作です。
●ストッパーステップの材質は外力からの衝撃に耐えるために、強化ナイロン樹脂を採用しています。
●ポリアミド樹脂(ナイロン6)はUL規格(94V-2)仕様となっております。
苏州上野机电设备有限公司销售电话：17895046997 刘经理
車輪径 Dmm
65㎜
車輪巾 Wmm
23㎜
旋回半径 r㎜
79㎜
偏心距離 Emm
24㎜
車輪取付高
Hmm
85㎜
座金寸法
L1mm×L2㎜
83㎜
取付ピッチ
P1㎜×P2㎜
68㎜
取付穴径 dmm
7㎜
取付座厚 t㎜
2.6㎜
許容荷重 1ヶ当
120㎏
